Thông số kỹ thuật:
Output power rating: 90W x 4 CH
4 ohm at 14.4V(1% THD+N): 90W x 4 CH
2 ohm at 14.4V(1% THD+N): 120W x 4 CH
Mono bridge at 4 ohms (1% THD+N): 240W x 2 CH
Operating voltage (RMS MAX OUTPUT): 9-16V
Power supply: PWM
Output power circuit configuration: MOSFET ClASS-AB
Main PCB Material: FR-4 D / 1 Oz
Thông số kỹ thuật khác:
Soft start sound: YES
Frequency response @-1dB (4ohm 10watt): 20Hz – 40kHz
Damping factor (4ohm/1%): >200
S/N Ration (A-Weight /RMS Power): >92 dB
THD (A-Weight) 10watt: 0.030%
Channel separation: >60dB
Variable Input gain control(1% THD+N): 0.25V~8.0V
Input Impedance: 20k ohm

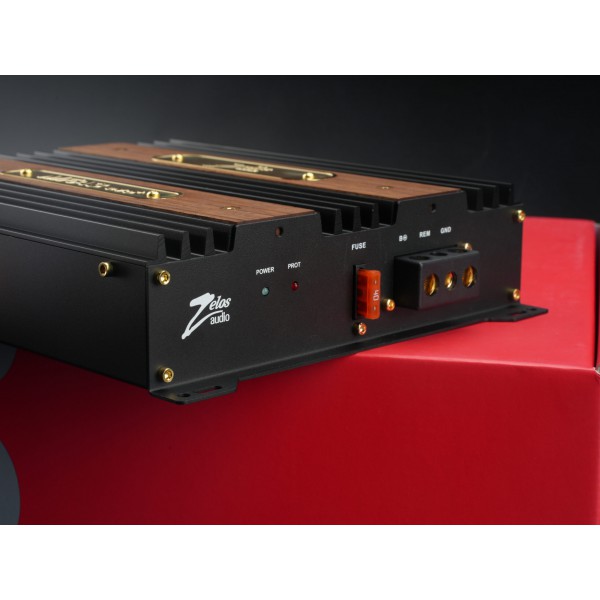

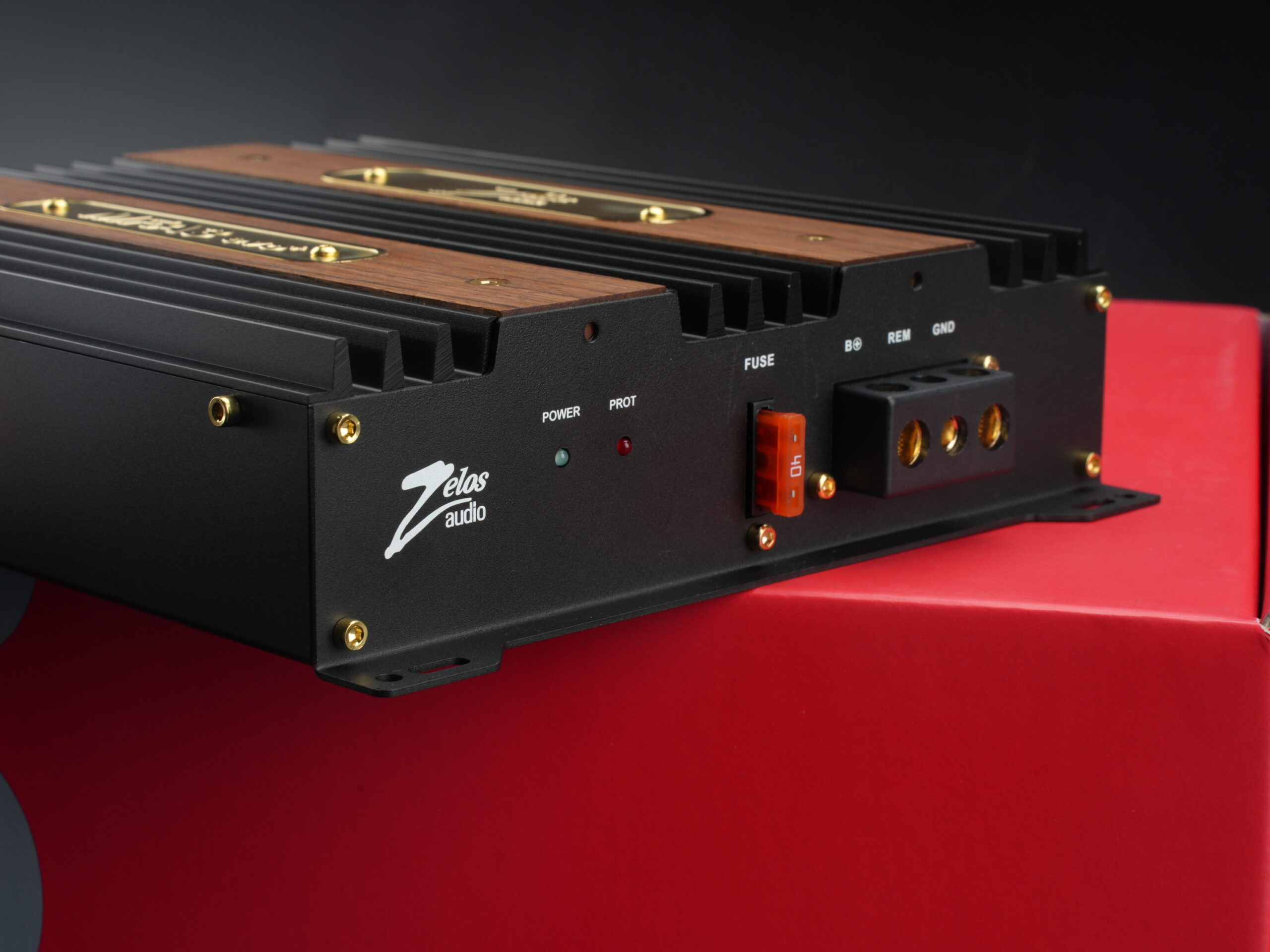

LED(s): Power/Protect
Protection(Short, Thermal, DC Offset): YES
Residual noise(A-Weight): 0.5mV below
Dimensions: 210x55x233
Weight: 2.6kg
Vị trí lắp đặt:
- Amply lắp ở dưới gầm ghế hoặc cốp xe
Chế độ bảo hành
Sản phẩm được bảo hành 2 năm trên toàn quốc. Bởi DM Sound chính hãng tại Việt Nam, sẵn sàng giải đáp mọi thắc mắc và tư vấn các gói nâng cấp âm thanh xe hơi phù hợp với nhu cầu của bạn.
